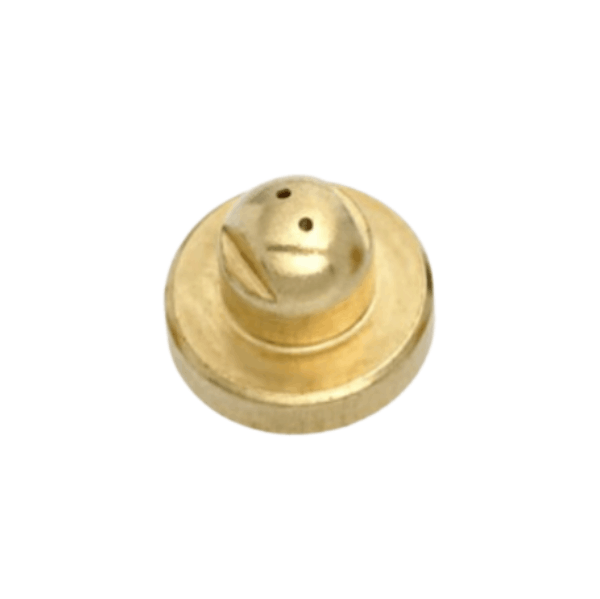

The 804604 CG is a .014″ dual-orifice dome mini nozzle that applies hot melt adhesive through two orifices set at a 30° angle, offering a bit more adhesive volume per point than the finer one while keeping the same compact dome mini footprint. It’s a good fit when your two-point bonding application needs a slightly fuller bead without moving up to a quad-orifice design or losing the space-saving benefits of the mini form factor.

Key Specifications

• Orifice type: Dual orifice
• Orifice diameter: .014″ (each orifice)
• Spray angle: 30°
• Nozzle style: Dome, mini
• Adhesive type: Hot melt
• Application: Bonding, sealing, coating

Why Choose This Nozzle

• Increased flow per point – the .014″ orifice delivers more adhesive volume
• Dual-point coverage – applies adhesive at two locations simultaneously for improved bond distribution
• Compact dome mini design – fits space-constrained equipment without sacrificing output
• Consistent, repeatable results – maintains uniform flow across both orifices in automated cycles

Common Applications

• Small component assembly needing a fuller two-point adhesive bead
• Compact equipment setups where space is limited but higher volume is needed
• Applications where a smaller dual orifice nozzle doesn’t provide enough adhesive per point

Who It’s For

Production teams assembling smaller parts who need more adhesive volume per contact point than a smaller dual orifice nozzle provides, while still requiring the two-point precision and compact footprint of a dome mini design.
