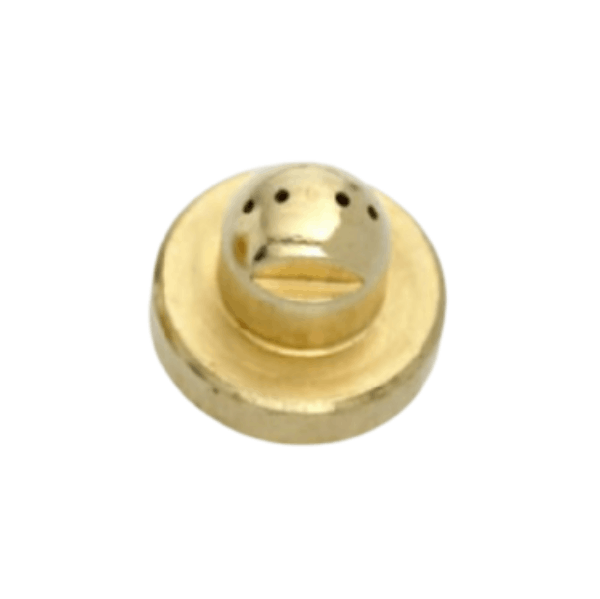

The 714855CG quad-orifice dome mini nozzle applies adhesive through four .012″ orifices arranged at a 30° angle, extending coverage beyond what a dual-orifice design offers. Rather than concentrating adhesive at one or two points, this nozzle spreads it across four contact points simultaneously, which is useful for parts that need broader surface coverage or a more even adhesive distribution without increasing pass count. The mini dome design keeps the nozzle compact, so it still fits into space-constrained equipment setups.

Key Specifications

• Orifice type: Quad orifice (4 points)
• Orifice diameter: .012″ (each orifice)
• Spray angle: 30°
• Nozzle style: Dome, mini
• Adhesive type: Hot melt
• Application: Bonding, sealing, coating

Why Choose This Nozzle

• Four-point coverage – distributes adhesive across four contact points in a single dispensing cycle
• Broader surface distribution – reduces the need for multiple passes on wider bonding areas
• Compact mini dome design – maintains a small footprint despite the increased orifice count
• Consistent multi-point accuracy – keeps output uniform across all four orifices for repeatable results

Common Applications

• Parts requiring adhesive spread across a wider surface area
• Assemblies where even, multi-point distribution improves bond strength
• Production lines aiming to reduce pass count on broader bonding surfaces

Who It’s For

Production teams working with parts or assemblies that need adhesive distributed across four points rather than two, particularly where surface coverage and even distribution matter more than a concentrated bond line while still requiring a compact nozzle footprint.
