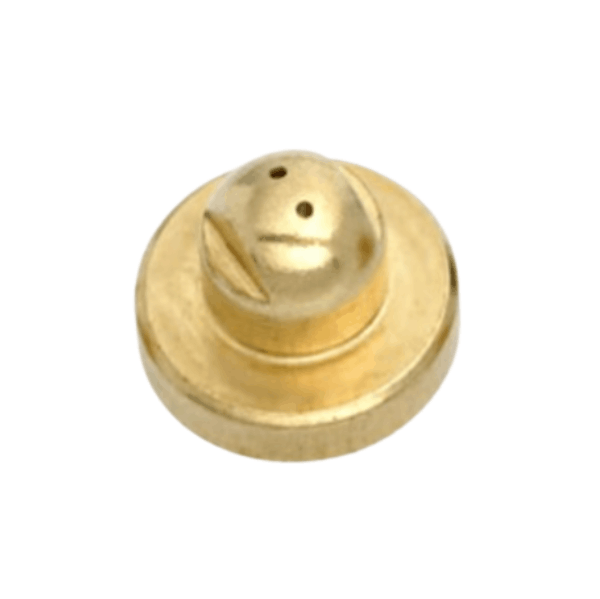

The 709371 CG is a compact dual-stream nozzle for precise, angled hot melt adhesive placement in tight or detailed applications. The dual-orifice dome mini nozzle combines two .012″ orifices set at a 30° angle, allowing adhesive to be applied in two controlled points simultaneously. Its dome design and mini form factor make it well-suited for compact assemblies or applications where space is limited but placement accuracy still matters. This dual-stream setup helps distribute adhesive across two contact points in a single pass, which can improve bond coverage and reduce the number of passes needed compared to a single-orifice nozzle.

Key Specifications

• Orifice type: Dual orifice
• Orifice diameter: .012″ (each orifice)
• Spray angle: 30°
• Nozzle style: Dome, mini
• Adhesive type: Hot melt
• Application: Bonding, sealing, coating

Why Choose This Nozzle

• Dual-point coverage applies adhesive at two points simultaneously, improving bond distribution
• Angled 30° spread supports targeted placement across a wider contact area than a straight single stream
• Compact dome mini design fits applications with limited clearance or smaller components
• Consistent, repeatable output maintains accuracy across automated production cycles

Common Applications

• Small component assembly requiring two-point bonding
• Compact or space-constrained equipment setups
• Applications needing wider adhesive coverage without switching to a fan or multi-orifice nozzle

Who It’s For

Production teams assembling smaller parts or compact products who need adhesive applied at two precise points in a single pass, particularly where equipment space is limited and a standard single-orifice nozzle wouldn’t provide adequate coverage.
